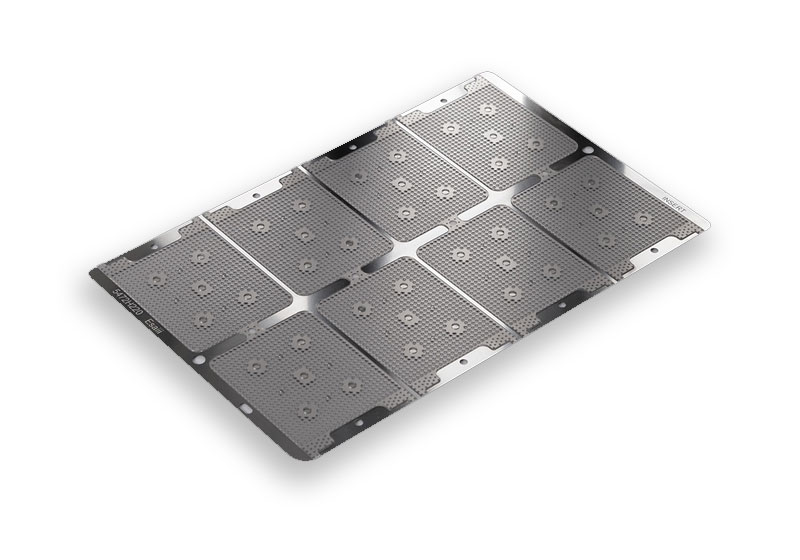

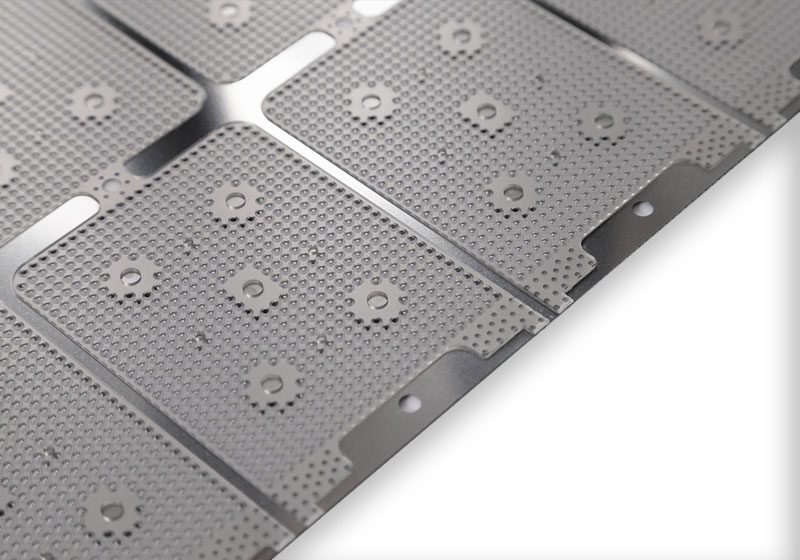

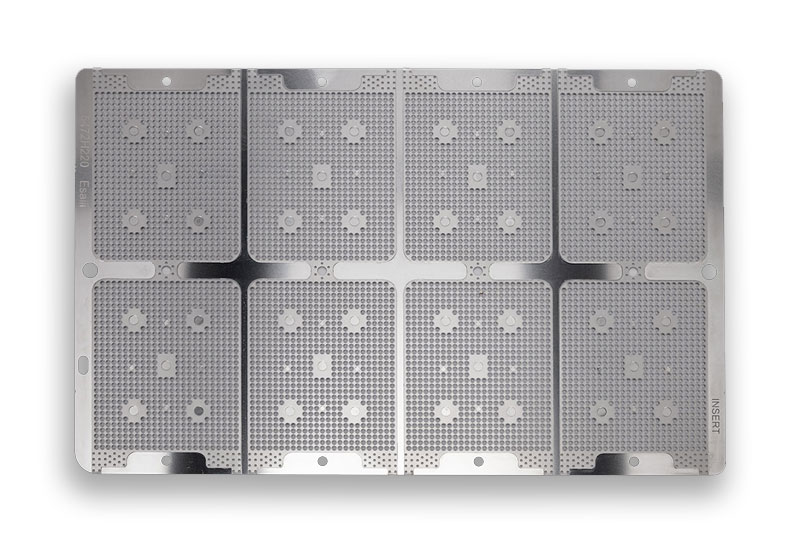

Thin Carrier Plate
Thin Carrier Plate
Thin Carrier Plate

Thin Carrier Plate

  • Thickness tolerance ±0.02mm
  • Silicone hole tolerance ±0.02mm
  • Use times: 350 times
  • Temperature resistance requirement: 280 degrees Celsius for 15-20 minutes
Thin Carrier Plate
Thin Carrier Plate
Thin Carrier Plate
Product Description
Product Specifications
Shipment Picture

High precision to ensure product clamping, precise positioning, Xinchao silicone,

Customized as your request
MOQ:300PCS, Free samples


Product Specifications

品号孔数孔径
ESAIII496496孔209
ESAIII752752孔123/124/175/181/182/185/189/192
ESAIII976976孔94/103/112/126/130/134/143/161
ESAIII12641264孔118/120/128/134/138
ESAIII15681568孔112/114/116/117/120/123/124/125
ESAIII22082208孔100/102/103/104/105/110
ESAIII24322432孔72/73/76/79/83/91/93/94/96/99
ESAIII31843184孔44/47/50/57/59/64/68/71/75/82/86
ESAIII35043504孔54/64/68/70/75/77/78/79/83
ESAIII45604560孔54/56/60/62/63/65/66/67/70
ESAIII54725472孔50/52/54/55/56/57/58/59/60/62
ESAIII72527252孔34/43/44/45/46/47/48/49/50/51/53/54/55
ESAIII75207520孔40/41/42/45/46/47/48
ESAIII81928192孔22/33/35
ESAIII86088608孔22/28/30/31/32/33/34/35/36/40/42/44/45
ESAIII1043210432孔28/29/30/31/32/33/34/35/36/37/38/39
ESAIII1377613776孔8/9/10/11/12/13/16/17/18/19/20/22/23/25
ESAIII1812818128孔20

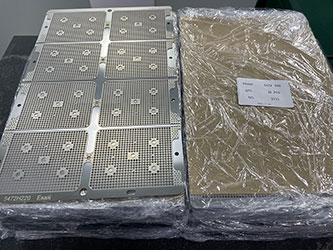

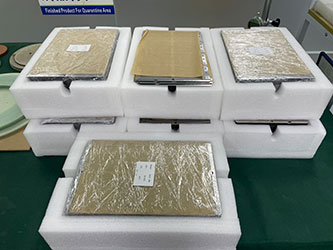

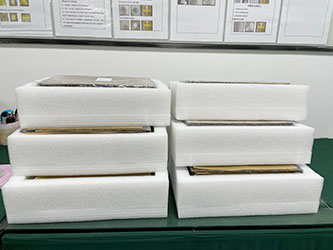

Shipment Picture

Shipment Picture
Shipment Picture
Shipment Picture
